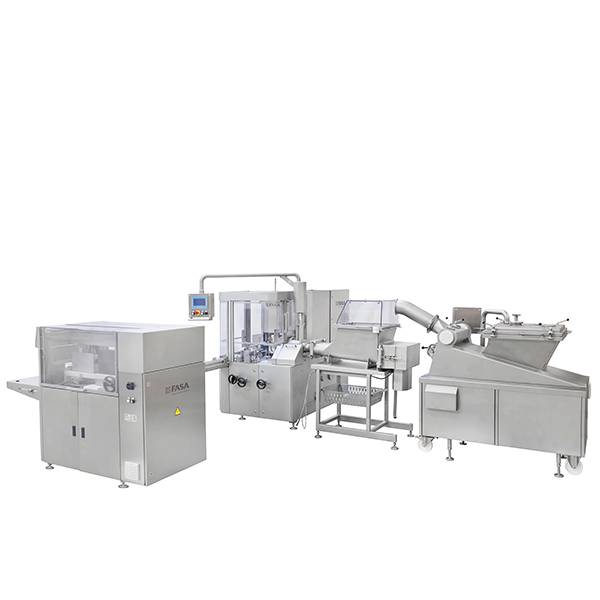

ARM-B3 - Butter filling and wrapping machine
ARM-B3 is designed to fill and wrap butter and margarine in aluminum foil, parchment paper or ecoline.
ARM-B3 machine can dose 200 – 500 g, capacity up to 40 packs/min.
Main features
- Packing paste type products into consumer size portions.
- Applicable products: butter, margarine, spreads, edible fats, curd.
- Type of dosing – volumetric.
- Two product feeding options: hopper with augers or direct feed from the production line via resting tube.
- Sizes of package: 200 – 500 g, capacity up to 40 packs/min.
- Easy to shift between portion weight by changing the height of brick, height adjustable by handle, the adjustment points are marked with a ruler.
- Shapes of bricks: rectangular or semi-round.
- Folding type of package: bottom folding.
- Product input temperature: butter +10….+14 °C, margarine +8….+14°C.
- Packaging materials: aluminum foil laminate, parchment paper, ecoline (with memory).
- PLC and HMI with Touch Screen.
- Fully automatic lubrication system.
- Pneumatic compensator.
- Stainless steel dosing unit.
- Pneumatic rotor switch.
- Stainless steel table with synthetic inserts.
- Machine body covers from stainless steel.
- Machine safety covers in accordance with CE safety requirements.
- Two sensors for foil tracking (roll width control; end of the roll).
- Foil centering device with photocell.
- UV lamp.
- Belt driven foil broaching shaft instead of chain.
- Stationary foil roll spindle.
- CIP except dosing unit (optional).
- Possible printers (optional): Ink jet or Thermo-printer.
Video
Benefits
RELIABLE PACKING MACHINE
The base model ARM machine has been in production for more than fifty years and is of a proven design. More than 8 300 models have been delivered worldwide. ARM-B3 machine was modernized in 2017. We achieved optimally simplified and reliable technological solutions that allow to operate and maintain the equipment easily and to meet the needs of a modern dairy plant.
ACCURATE DOSING
The machines fill and wrap such products like butter, margarine, edible fats, curd or other products of paste type consistencies with a certain filling level. The dosing device accurately fills the formed bricks avoiding a product leakage. Easy to shift between portion weight by changing the height of brick, height adjustable by handle, the adjustment points are marked with a ruler.
INTEGRATED SOLUTION
Improvement of packing by the integrated end of the line solution: semi-automatic case packer DSU is available for the end of the line packaging into cartons.
